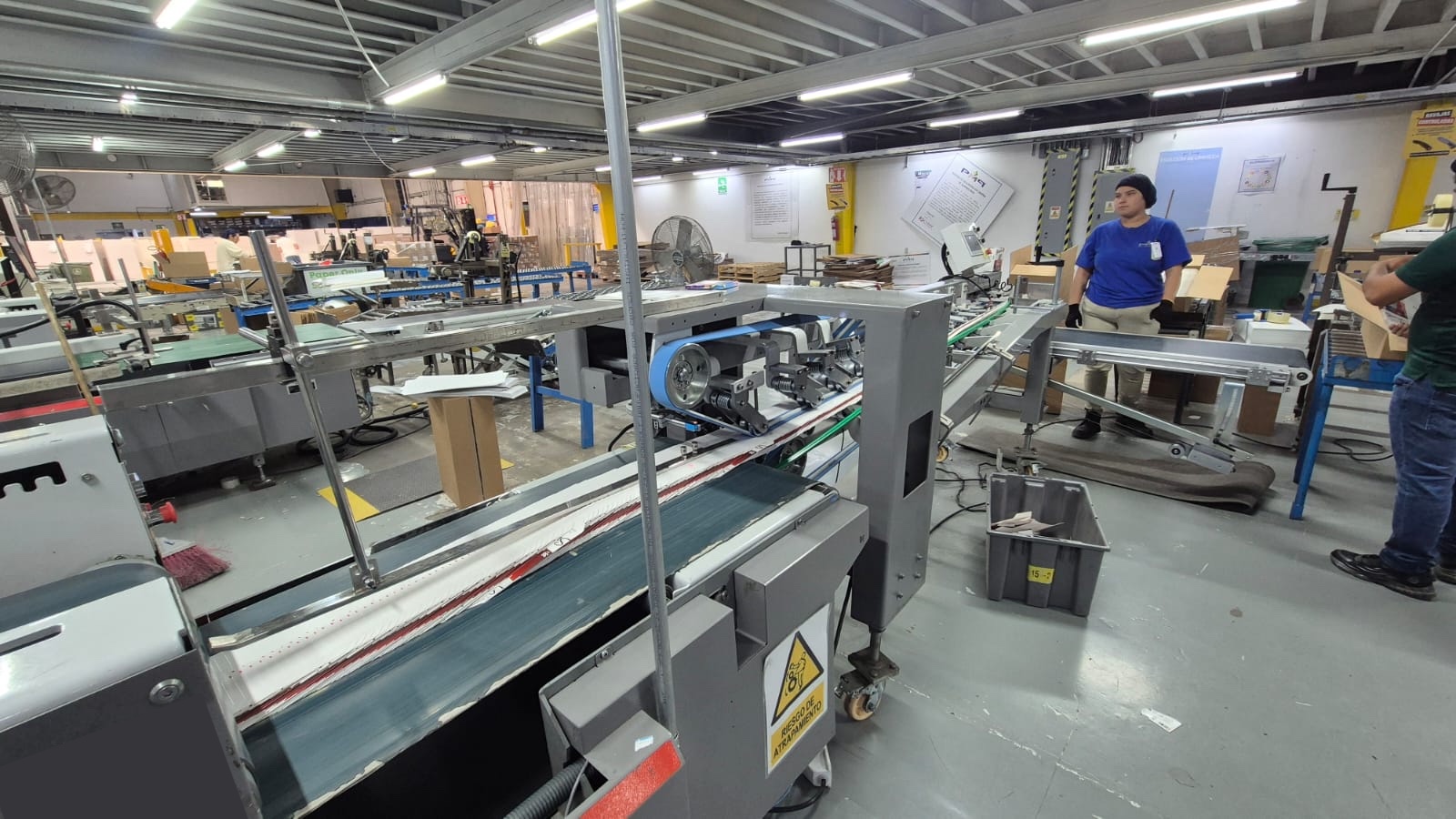

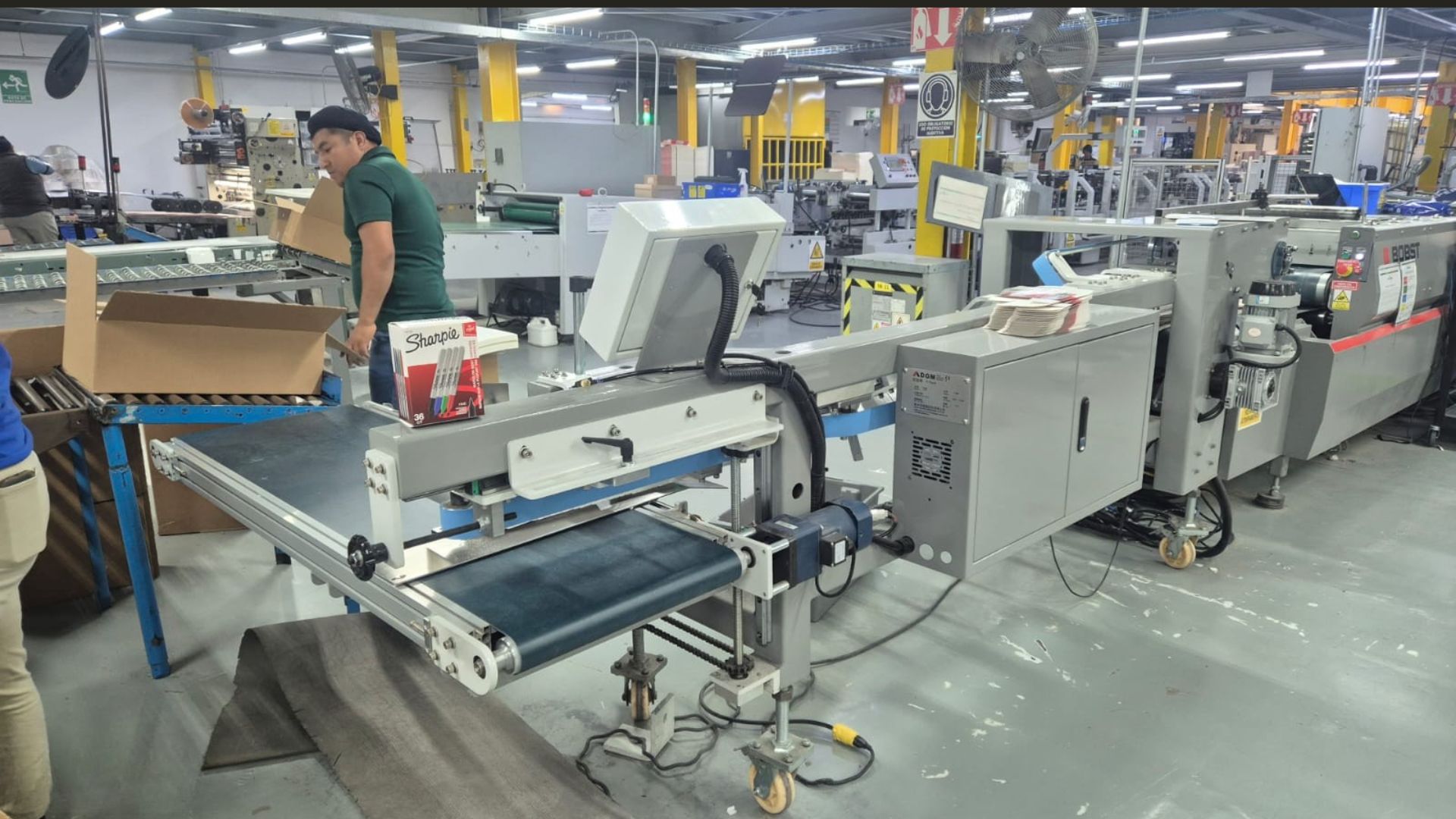

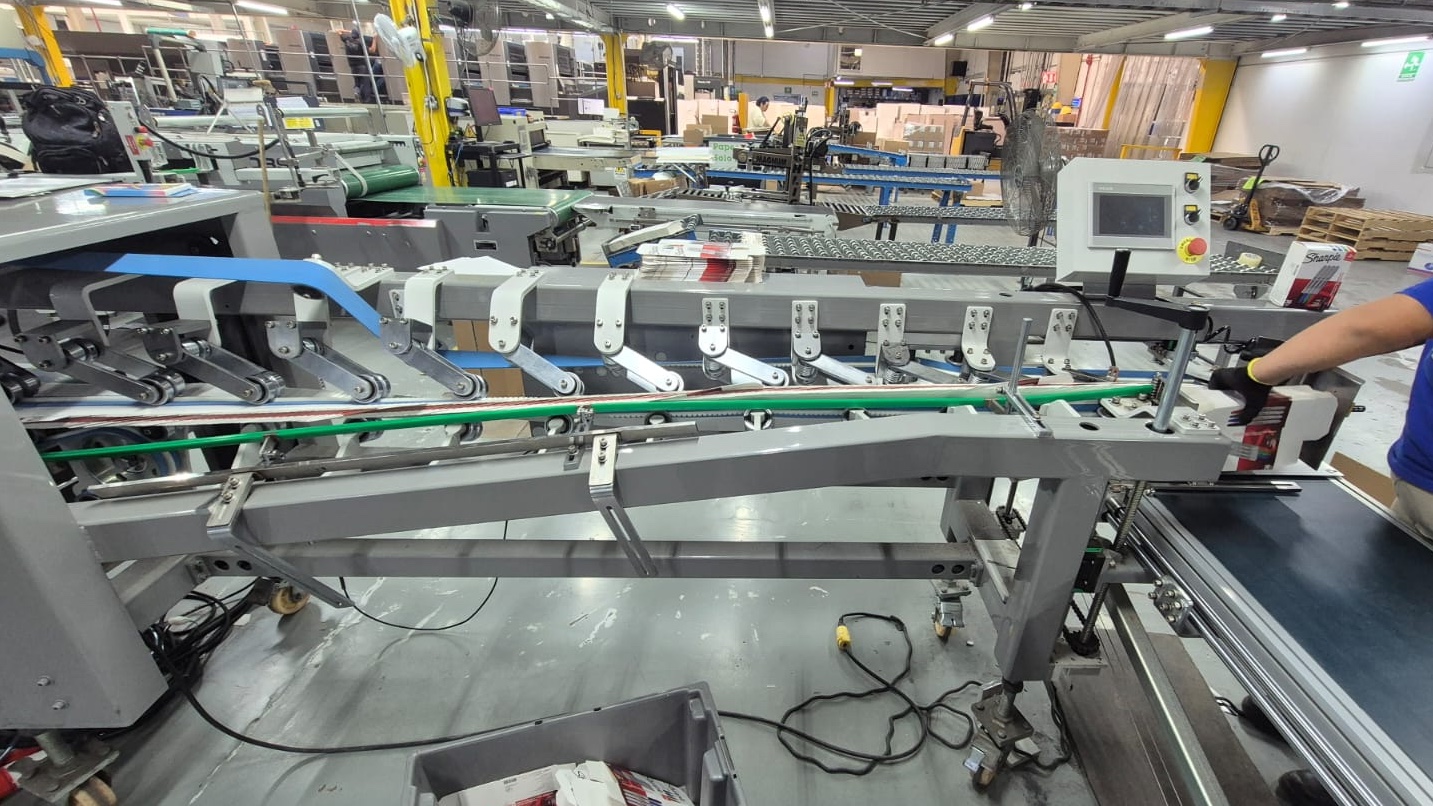

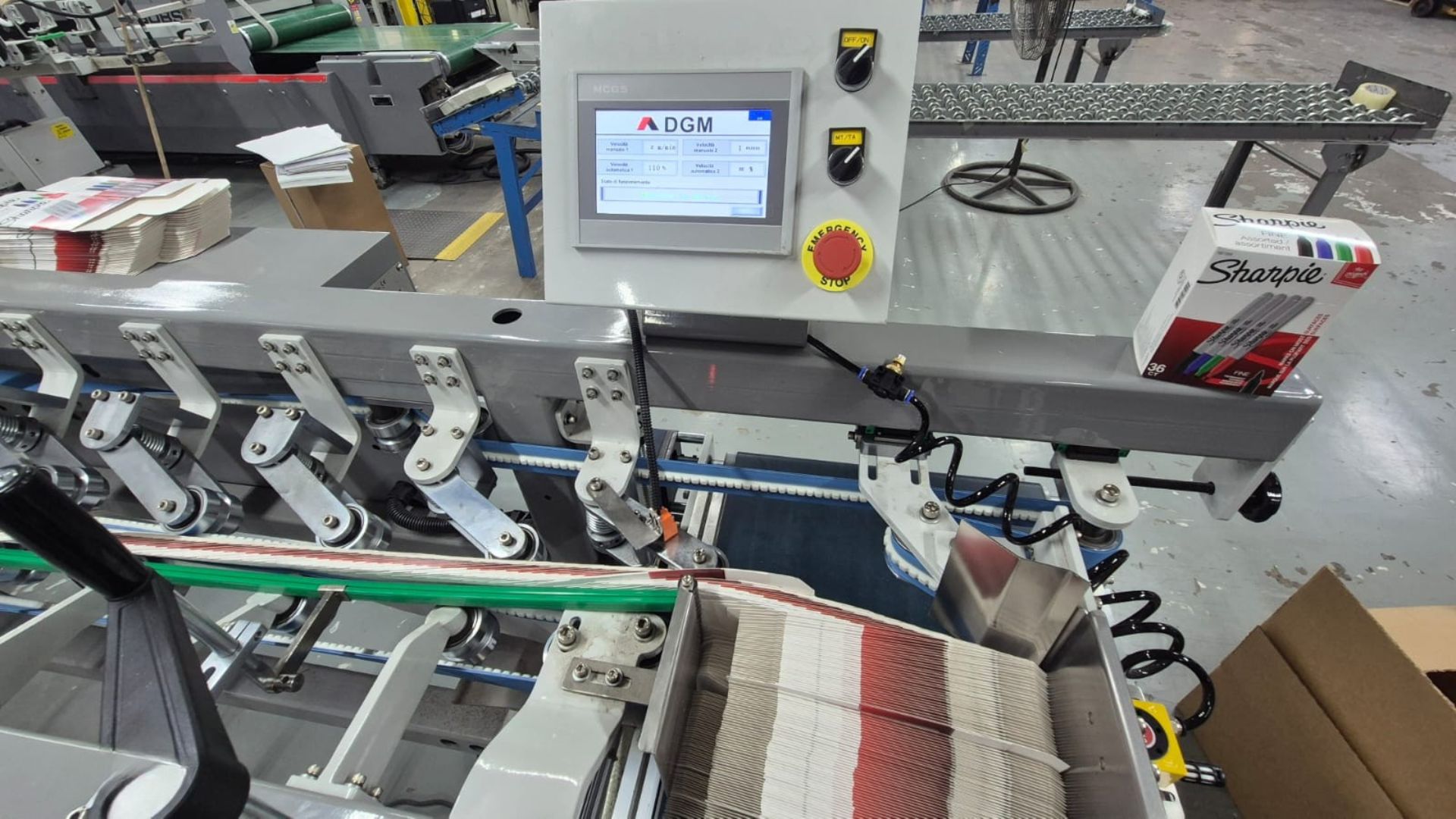

Successful Installation By The Royo Machinery Team - Box Folder Gluer Royo Machinery RG-Pack

A production line can manufacture boxes at high speed, but if they still need to be collected, aligned, rotated, and organized manually at the end, a part of that capacity is lost. The Royo Machinery RG-Pack Semi-Automatic Box Collector automates this process, keeping boxes moving and ready for packing or palletizing. Its vibration alignment system, automatic 90° rotation, and flow control reduce manual handling and prevent the production output from becoming a bottleneck. For our client in California, by automating a repetitive task that normally requires time and personnel, the RG-Pack allows for a much better utilization of the line's capacity and maintains a continuous production flow. More boxes in motion. Less manual labor. Greater capacity utilized.

(7936) Box Folder Gluer Royo Machinery RG-Pack 2025, Specifications are subject to change without notice, Voltage: 220V 1Phase 60HZ, Weight: 0.88t, 90-degree turning section, Capability: Folded box length 50-500 mm , Capability: Folded box width 75-430 mm, Processed material: Cardboard, corrugated board E N & F, Dimensions: 3400 x 1900 x 1200 mm, Horizontal collection section, Semi-automatic box collecting machine, The embossing guide wheel guides the upper and lower belts to turn the boxes through 90 degrees, Speed: 0-14 m/min, The upper belt guiding pulley pressure is adjustable according to each job, Power: 1 kW, Two 60mm width transferring belts, Two alignment plates with vibration to regulate the box flow
